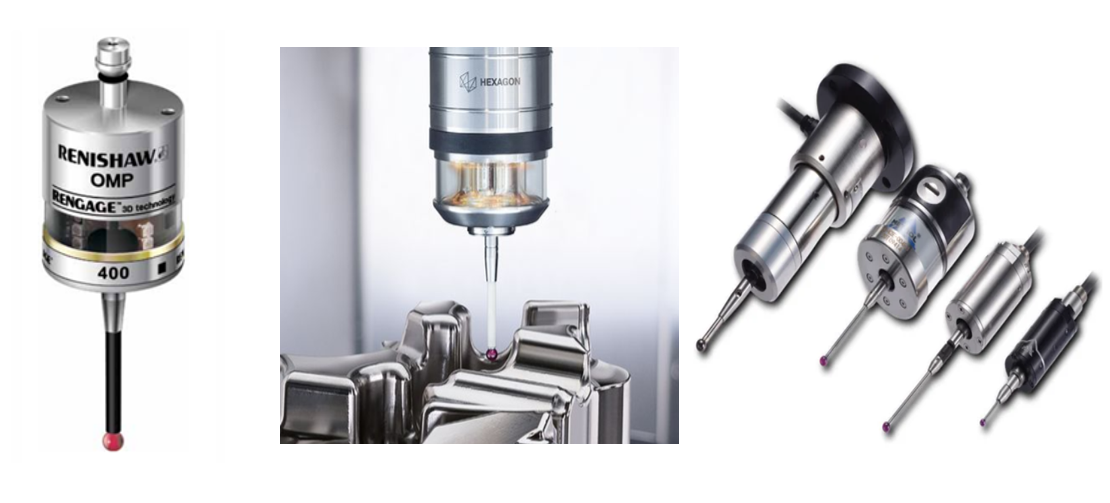

Renishaw Probe(renishaw OMP-400, renishaw OMP40-2, renishaw RMP60, etc)
Hexagon Probe(hexagon 40.2) marposs probe 40 etc,
All Maker Repair Probe check status Probe's normal
□ Step By Step defect cause analysis
- Based on probe repair experience over the years, we check Device
abnormalities are in order mechanism/electricity/signal through
method physical/sequential dismantling method Determine the
cause and make corrections Repair then replace components
to prevent prevent errors from recurring.
□ Probe signal transmission tester
- We will do a check to make sure infrared sensor accuracy,
two-way communication, communication distance,
Verify the Probe's signal delay status after repair to make an
assessment of the condition Probe's normal demeanor in both
respects technique, mechanism, communication, electricity,
determination inspection and repair have been performed properly
□ Check Simulation Probe CNC
- Check the operating status/position of the Probe and signal
judgment in the CNC environment Identify Probe operation
problems.→ Check the Probe's movement status on the X, Y, Z
axes and confirm the average signal Usually to ensure repairs
Probe has been performed according to the correct procedure
before installing into the device during the process Check
before CNC assembly
□ Check the Probe repeatability
- Use the Probe testing machine made by us invention to test
continuously/with repetition the Points are specified according
to the 30-degree measuring angle valuefrom MIN to MAX
to determine the error deviations in measurement data, and use
of testing equipment Dedicated test to diagnose performance of
Probe has reached the benchmark value after repair
□ Probe WPT(Water Proof Test)
- To prevent recurrence due to reassembly errors After repair,
we put it into history Use a waterproof testing system to Test
the actual usage environment Quality assurance after the assembly
disassembled product. When repairing Probe

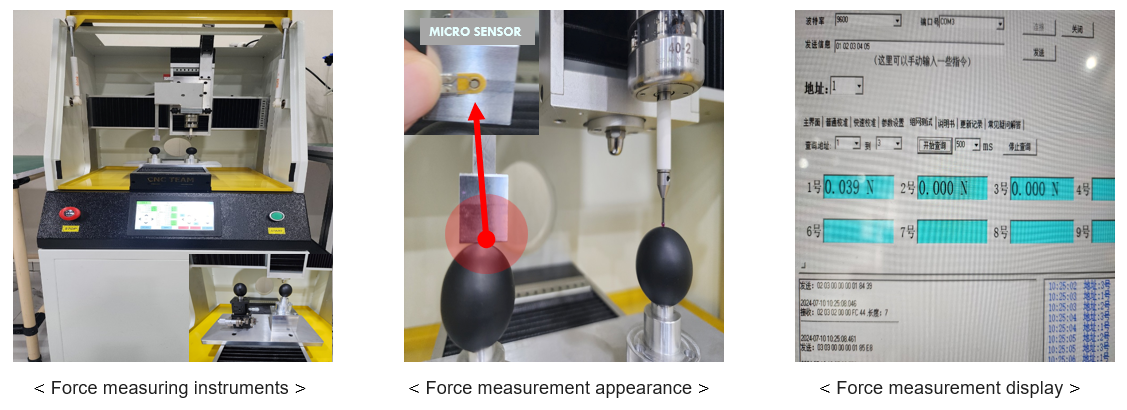

□ Check Probe Force measurement
- Once the Probe is repaired, we will Measure N value
(Trigger Force-signal response) that Probe receives to
conduct testing. Force conforms to manufacturer's
requirements and customers, to improve reliability of the
Probe repair process has precision necessary. We will also check
and confirm Show that the output of N is the same over
many times measurement times, to ensure accuracy and
precision suitability of the Probe repair process
□ Check out the Aging Probe
- After repairing the probe, check stability of temperature
and changes in voltage and output over time to improve reliability
reliability of the repaired product. Establish Aging time is
consistent with US standards customers (usually from 8am or more)
to Check product changes accordingly time and detect problem
early can happen
□ Probe Repair Process
------------------------------------------------------------------------------------------
ADD : TP. Bắc Ninh, Việt Nam
Tel/ Hotline: (+84) Vietnam
0963086761
E-mail : rework.teamvn@gmail.com
wnrj7707@naver.com
kakao : kimjungho7707
zalo : 0963086761
-----------------------------------------------------------------------------------------
Repair service and sale of CNC components We specialize in repairing
CNC parts such as Probe, Spindle, Motor, Servo pack, etc.,
We also provide special parts and new parts, used parts at cheaper
prices market. Especially for Probes, we can repair and sell Probes from
major brands such as Renishaw, Hexagon, as well as other types of
Probes.We use many devices to repair, diagnose and test components
such as Spindle, Motor, Servo pack. We look forward to receiving your
interest and contact.
-----------------------------------------------------------------------------------------
